这篇文章给大家讲解dhtmlxGantt如何调整网格的行大小。
可以更改网格中单独行的高度,dhtmlxGantt 库提供了两种管理行高的方法:
- 通过为必要的任务对象设置行的高度和任务栏的高度;
- 通过拖动网格行的底部边框。
gantt.config.columns = [ {name:"wbs", label:"WBS", width:40, template:gantt.getWBSCode }, {name:"text", label:"Task name", tree:true, width:170 }, {name:"start_date", align:"center", width: 90}, {name:"duration", align:"center", width: 60}, {name:"add", width:40}];

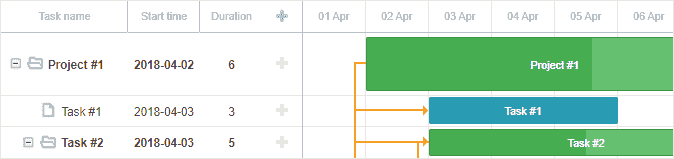

设置行高
您可以根据需要调整特定行的高度。
为此,您需要重新定义 的row_height 和 bar_height属性: 数据集中任务对象
gantt.parse({ data: [ { id: 11, text: "Project #1", type: "project", progress: 0.6, open: true, row_height: 70, bar_height: 60 }, { id: 12, text: "Task #1", start_date: "03-04-2018", duration: "5", parent: "11", progress: 1, open: true }, { id: 13, text: "Task #2", start_date: "03-04-2018", type: "project", parent: "11", progress: 0.5, open: true } ], links: []});
或者您可以动态实现它:
gantt.getTask(11).row_height = 50;gantt.getTask(11).bar_height = 25;// re-render Gantt to apply the changesgantt.render();

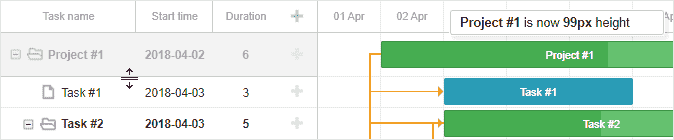

通过拖放调整行大小
要让用户可以通过拖动行的底部边框来调整网格中的行大小,请将 gantt.config.resize_rows 选项设置为 true :
gantt.config.resize_rows = true;
gantt.config.min_task_grid_row_height : 选项提供了定义在调整大小期间可以为任务设置的最小行高的能力
gantt.config.min_task_grid_row_height = 45;
